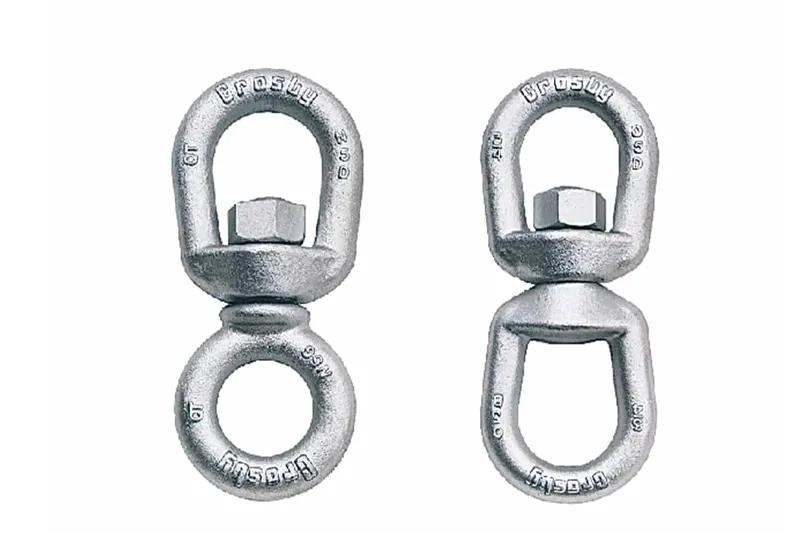

Fed. Spec. Eye & Eye Swivels are high-performance components engineered for demanding rigging and lifting tasks in marine, industrial, and construction sectors. These swivels are available in various materials including stainless steel 316, alloy steel, carbon steel, and super duplex steel—each offering unique benefits in terms of strength, corrosion resistance, and durability in extreme environments.
The design of the eye & eye swivel helps reduce stress from twisting and tangling of ropes or chains during operation. These components are especially useful in systems where constant tension is applied, as they help preserve the structural integrity of the connected equipment by allowing limited movement and flexibility under load.
Manufactured to comply with Federal Specification RR-C-271F Type VII, Class 2, these swivels feature a forged construction for enhanced reliability. They include weight load markings and are CE certified in many cases, ensuring safe usage in critical applications. Sizes typically range from 1/4″ to 5/8″, and some variants support working loads up to 5,200 lbs.
A distinctive feature of these swivels is the extra-large eye opening, which makes them compatible with oversized ropes, chains, or cables. This added versatility makes them suitable for a wide range of industrial and commercial uses, especially in sectors requiring robust linkage between lifting equipment and load.
Although these swivels are designed to align and prevent rotation stress, it’s important to note that they are positioning devices and not intended to swivel freely under load. Their primary purpose is to maintain alignment and reduce wear caused by twisting forces, especially when used in conjunction with rope and chain assemblies.
Fed. Spec. Eye & Eye Swivel
| ITEM | A (size) | B | C | D | E | F | WLL (LB) | WT (LB) |
|---|---|---|---|---|---|---|---|---|
| ISCO-FSEES01 | 1/4" | 0.31" | 0.75" | 0.80" | 1.06" | 2.92" | 900 | 0.19 |
| ISCO-FSEES02 | 3/8" | 0.50" | 1.25" | 1.06" | 1.50" | 4.29" | 2,600 | 0.68 |
| ISCO-FSEES03 | 1/2" | 0.63" | 1.50" | 1.45" | 2.00" | 5.42" | 4,400 | 1.33 |
| ISCO-FSEES04 | 5/8" | 0.75" | 1.75" | 1.73" | 2.38" | 6.55" | 6,000 | 2.29 |
1/ 4” to 5/8” & As Per Drawings.
As per Standard Length & As per Clients Requirements.
Electro Polished (EP), Aluminium Finish, Black Carbon Coated, Galvanised Coating, Bright Etc…
Fed. Spec. Eye & Eye Swivel Manufacturer Name, Fed. Spec. Eye & Eye Swivel Size, Fed. Spec. Eye & Eye Swivel Grades, Fed. Spec. Eye & Eye Swivel Weight Load Capacity Etc.
Jaw & Jaw Swivel, Fed. Spec. Eye & Eye Swivel, Fed. Spec. Jaw & Eye Swivel, Fed. Spec. Chain Swivel, Forged Jaw & Jaw Swivel, Eye & Eye Swivel, Heavy Duty Eye & Eye Swivel, Eye & Jaw Swivel, Eye & Jaw Swivel w/ No Snag Pin, Heavy Duty Eye & Jaw Swivel, Heavy Duty Jaw & Jaw Swivel Etc…
Stainless Steel Fed. Spec. Eye & Eye Swivel:
|
Mild Steel (MS) Fed. Spec. Eye & Eye Swivel:
|
Fed. Spec. Eye & Eye Swivels are crafted from high-grade materials such as stainless steel 316, alloy steel, and carbon steel, making them highly resistant to corrosion and wear. These swivels are ideal for heavy-duty marine, industrial, and rigging applications where durability and reliability are critical. Their forged construction ensures long-lasting performance under challenging environmental conditions.
These eye & eye swivels conform to Federal Specification RR-C-271F Type VII, Class 2 (except 316 SS) and are designed to prevent twisting and stress on ropes, chains, or cables. With load capacities up to 5,200 lbs and sizes ranging from 1/4″ to 5/8″, they offer flexibility and strength for a wide range of uses. Their large eye openings make them easy to integrate into various rigging systems.
