Invar 36 Sheets and Plates, also referred to as Nilo® 36 or Alloy 36, are high-performance materials widely used in industries where dimensional stability is critical. Sunshine Industry manufactures and supplies Invar 36 Sheets and Plates in various specifications including UNS K90600 and 1.3912. The product range is available in different sizes and types to cater to diverse industrial needs across India and globally.
INVAR 36 Sheets are composed of 36% nickel and iron alloy, known for exhibiting near-zero thermal expansion. This makes them highly stable in temperature ranges from -100°C to 200°C—about one-tenth the expansion rate of carbon steel. These plates also provide exceptional toughness and strength at cryogenic temperatures, making them ideal for low-temperature environments like scientific instruments and aerospace structures.
Sunshine Industry produces Invar 36 Plates in both hot-rolled and cold-rolled forms, including chequered and shim sheets. The UNS K90600 Sheets are available in two grades: the standard low-expansion alloy and a Free-Cut variant for better machinability. These are often enhanced with trace elements like selenium to meet productivity demands in machining environments while maintaining excellent mechanical and dimensional performance.
K-90603 and K-93050 Sheets from Sunshine Industry are widely appreciated for their abrasion, oxidation, and corrosion resistance. These sheets offer excellent performance in extreme conditions and are used in bimetal thermostats, positioning devices, and aerospace composite molds. Their resistance to seizing and galling adds to their versatility for critical components in LNG tankers, optical devices, and other temperature-sensitive applications.
Sunshine Industry ensures that all Invar 36 Sheets and Plates go through rigorous quality testing for strength, precision, and reliability. The company leverages modern manufacturing technologies, advanced tools, and a highly skilled team to ensure that the final product meets international standards. Whether it’s the Free-Cut variant or traditional grade, all materials are crafted to provide long-lasting performance and superior stability.
Hot-Rolled (HR) / Cold-Rolled (CR)
0.1mm to 100 mm Thk
10-2500mm
1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, Cut to size available
Invar 36 Sheet, Plates / UNS-K90600 / K90603 / K93050
| STANDARD | Material No | UNS | EN Designation | Alloy |
|---|---|---|---|---|
| Invar 36 | 1.3912 | UNS-K90600 / K90603 / K-93050 | Ni 36 | 36 |
Invar 36 Chemical Composition (Basic Density 8.36)
| Grade | Ni | C | Si | Mn | S | P | Cr | Co | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Invar 36 | 35.5 – 36.5 | 0.01 max | 0.2 max | 0.2 – 0.4 | 0.002 max | 0.07 max | 0.15 max | 0.5 max | Balance |
| Metallurgical Condition | Yield Strength | Tensile Strength | Hardness | Elongation |
|---|---|---|---|---|
| Annealed, Descaled | KSI (MPa) 38 (260 MPa Max) |
KSI (MPa) 63 (430 MPa Max) |
HB 135 | >30% (Typical 40%) 50mm |

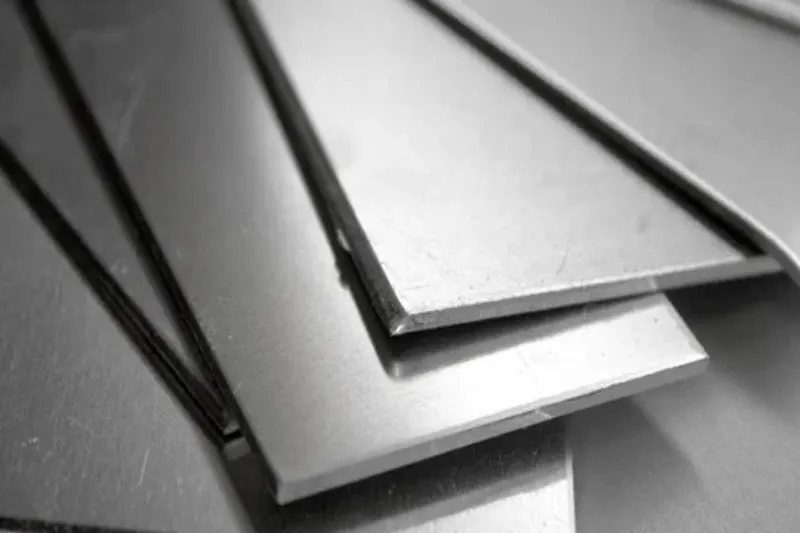

INVAR 36 Sheets are a nickel-iron alloy known for having one of the lowest thermal expansion rates among metals. They are ideal for high-precision applications such as aerospace tooling, scientific instruments, and cryogenic components. These sheets maintain dimensional stability even in fluctuating temperatures, ensuring consistent performance in critical environments.

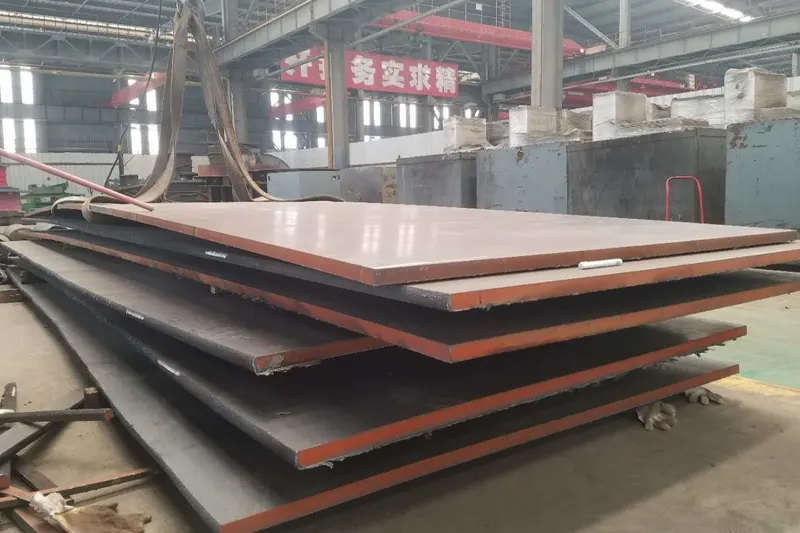

Sunrise Industries supplies premium-grade INVAR 36 Plates, available in various thicknesses and specifications to meet exact customer requirements. Known for excellent machinability and thermal control, these plates are widely used in electronics, optics, and industrial molds. With a strong focus on quality and prompt delivery, we cater to both domestic and international project demands.
As your one-stop manufacturing partner, Sunrise Industries maintains a complete inventory of ready-to-sell raw materials alongside custom parts fabrication and full engineering services. From prototyping to production, we provide everything at a single location—serving all industrial sectors and transforming manufacturing value chains.
