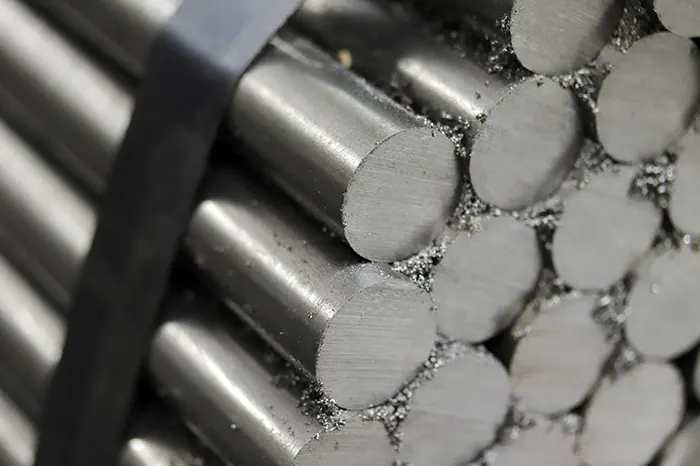

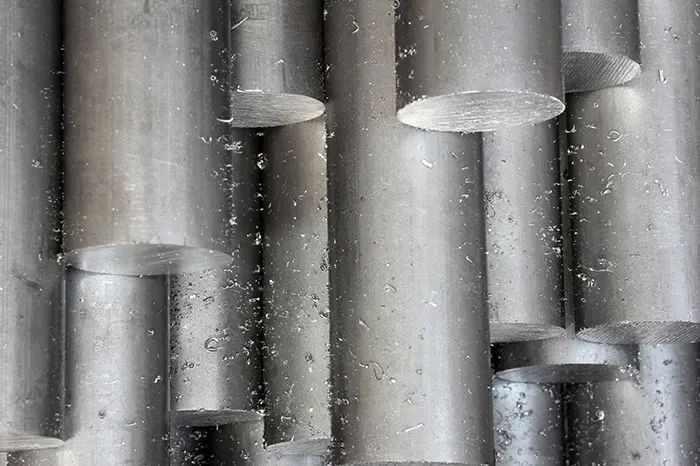

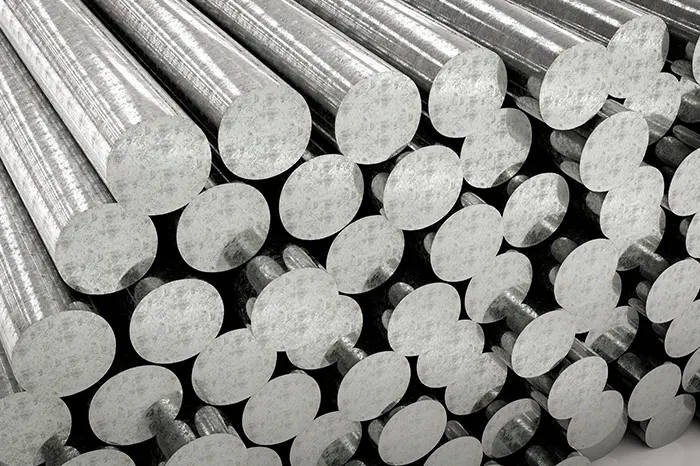

Monel 400 Round Bar

Sunrise Industries is a leading manufacturer, supplier, and exporter of Monel 400 Round Bars made from premium quality raw materials. Our products comply with ASTM B164 / B865 and ASME SB164 / SB865 standards. Known for exceptional corrosion resistance and high mechanical strength, these bars are widely used in marine, chemical, and industrial applications.

We supply Monel Alloy 400 Rods, Hex Bars, and Square Bars in both hot rolled and cold drawn forms. These nickel-copper alloys offer superior resistance to seawater, hydrofluoric acid, and alkalis. Our precision-engineered bars are available in multiple finishes like bright, polished, and black.

Sunrise Industries manufactures Monel 400 Forged Bars and Hollow Bars for heavy-duty industrial applications. These bars deliver excellent toughness and durability, making them ideal for oil & gas, marine, and chemical processing industries. We offer both standard sizes and customized dimensions.

Sunrise Industries manufactures a wide range of Alloy 400 blind flanges and threaded flanges, offering solutions for systems requiring secure closures and non-welded connections. Blind flanges are ideal for sealing pipe ends under pressure, while threaded flanges are perfect for applications where welding is not feasible. Crafted from Monel 400, these flanges provide excellent resistance to corrosion in seawater, steam, and acidic solutions. They retain strength at high temperatures and can operate from cryogenic levels up to 450°F (232°C). Available in various pressure ratings and sizes, our products adhere to ASTM B564 and ASME B16.5 standards, ensuring compatibility and reliability across different industries.

Our Monel Alloy 400 product range includes flat bars, spring steel bars, threaded rods, rectangle bars, and polished square bars. Each product undergoes strict quality testing to ensure high performance and long service life in demanding environments.

Monel 400 Flanges – High Strength & Corrosion Resistance

Premium Material: Made from Monel UNS N04400 / WNR 2.4360 alloy.
Excellent Durability: Resists seawater, acids, alkalis, and harsh chemicals.
Wide Range: Weld neck, slip-on, blind, threaded, socket weld, spectacle, RTJ, and lap joint flanges.
International Standards: Manufactured as per ASTM B564, ASME SB564, ANSI B16.5.
Custom Sizes: Available in various dimensions, shapes, and specifications.
Global Supply: Exported to USA, UAE, Saudi Arabia, Qatar, Singapore, Australia, and more.

Monel 400 Butt Weld Pipe Fittings – Sunrise Industries

Monel 400 Flanges Fittings

ASTM B564 Monel 400 Industrial Flanges Specification

Grades : Monel 400 (UNS No. N04400)

Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Specifications: ASTM B 564 / ASME SB 564

Size: 1/8″ TO 48″ NB

Class: 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64

Wall Thickness: From 2 to 40 mm.

Schedule: Sch. 5 TO Sch. XXS.

Type: Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ).

Form: Slip on (SORF), WNRF, Blind, Socket Weld, Orifice, WNRTJ, BLRTJ, Threaded, Groove & Tongue, Lap Joint, Square Flanges & As Per Clients Required

ASTM B366 Monel 400 Butt Weld Pipe Fittings Equivalent Grades:-

Standard	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Monel 400	2.4360	N04400	МНЖМц 28-2,5-1,5	NU-30M	NW 4400	NA 13	NiCu30Fe

ASTM B366 Monel 400 Butt Weld Pipe Fittings Chemical Composition:-

Grade	Ni	Fe	C	Mn	Si	Cu	Al	Ti	S
Monel 400	63.0 min	1.0 - 2.5	0.30 max	2.00 max	0.5 max	28.0 - 34.0	0.5 max	-	0.02 max

ASTM B366 Monel 400 Butt Weld Pipe Fittings Mechanical Properties :-

Density	Melting Point	Tensile Strength	Yield Strength (0.2% offset)	Elongation
8.8 g/cm³	1350 °C (2460 °F)	Psi – 80,000 , MPa – 550	Psi – 35,000 , MPa – 240	40 %

Types of Monel 400 Flanges Fittings:-
▪ Monel 400 Flanges Stockholder in Egypt	▪ Monel 400 Square Flanges Manufacturer in India
▪ Monel Alloy 400 Din Standard Flanges Exporter	▪ ANSI B16.5 Monel 400 Flat Flanges Exporter
▪ Monel UNS N02400 ANSI standard Flanges	▪ Monel Alloy 400 BLRF Flanges Supplier in Chile
▪ Monel DIN 2.4360 Plate Flanges in Tanzania	▪ Monel Alloy 400 Orifice Flanges in Nigeria
▪ Monel JIS NW 4400 Slip on Flanges Supplier	▪ Monel 400 Raised face Flanges in Ethiopia
▪ Monel Alloy 400 Lap joint Flanges Stockiest	▪ Monel Alloy 400 Welding Neck Flanges
▪ ASME SB 564 Monel 400 Reducing Flanges in Zambia	▪ Monel Alloy 400 SORF Flanges Traders in Peru
▪ ASTM B 564 Monel 400 Blind Flanges in Madagascar	▪ Monel 400 Pipe Flanges in South Africa
▪ B564 Monel 400 Alloy Screwed Flanges Trader in Libya	▪ Monel Alloy 400 Forged Flanges in Ghana
▪ Monel Alloy 400 Industrial Flanges in Algeria	▪ Monel 400 ASTM B564 Spectacle Flanges
▪ Monel 400 Ring Type Joint Flanges in Africa	▪ Monel 400 Socket Weld Flanges in Brazil

Custom Solutions for Global Clients

We provide custom-made Monel 400 Round Bars as per client specifications. Our products are available in different shapes and sizes, suitable for a variety of industrial requirements. We export to Saudi Arabia, Qatar, UAE, USA, South Africa, and many other countries.

Corrosion Resistance & Fabrication

UNS N04400 bars offer high resistance to corrosion from seawater, acids, and alkalis. They can be easily fabricated through hot- and cold-working, machining, and welding. These properties make them a preferred choice for industries requiring durability and strength.
