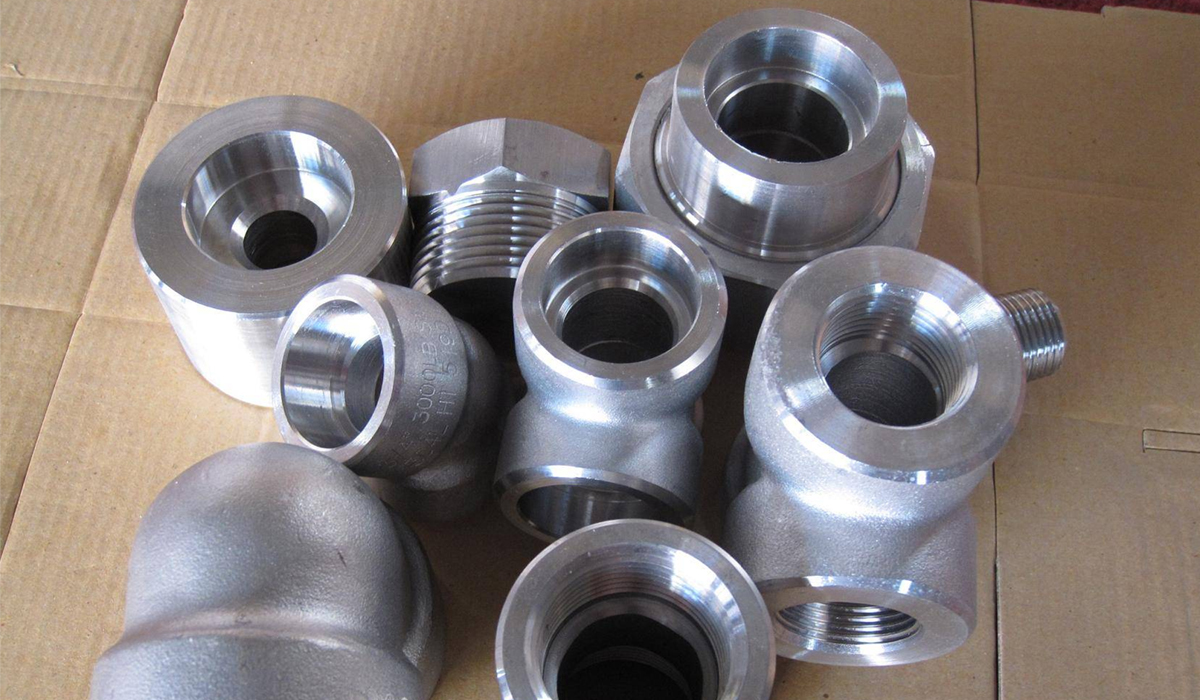

Super Duplex S32760 Forged Fittings

Duplex Steel S32760 Forged Fittings are designed for superior performance in industries requiring strength and corrosion resistance. With excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, these fittings are ideal for harsh environments such as offshore platforms, desalination plants, and marine applications. Manufactured as per global standards, they ensure long service life and reliability. Available in socket weld and threaded types, they offer flexibility for different piping requirements. These fittings are supplied in a wide range of dimensions and customized sizes to meet industrial needs, making them a trusted solution for challenging applications.
Get Quote
Super Duplex Steel S32760 Socket Weld Fittings are widely used in chemical processing, petrochemicals, and power generation industries. Their unique composition, with a balanced microstructure of austenite and ferrite, offers excellent toughness along with high mechanical strength. These fittings provide superior resistance to chloride stress corrosion and seawater environments, making them highly reliable for offshore and subsea applications. The durability and strong weldability make them suitable for high-pressure piping systems. Available in caps, elbows, and tees, these forged fittings ensure leak-proof connections and are manufactured to international quality standards, ensuring excellent performance under demanding conditions.
Threaded fittings made from Duplex Steel UNS S32760 are known for their versatility and durability. They are designed to provide reliable connections in industrial pipelines without the need for welding. With exceptional resistance to corrosion, erosion, and wear, these fittings are preferred in industries such as oil and gas, marine, and desalination plants. The alloy’s balanced microstructure delivers both strength and ductility, making it suitable for high-pressure and high-temperature applications. Available in couplings, unions, bushings, and plugs, these threaded fittings are offered in a variety of sizes and specifications to meet diverse industrial requirements.
Super Duplex Steel S32760 Forged Pipe Fittings offer outstanding performance in aggressive environments. Known for their high strength and superior resistance to localized corrosion, they are widely used in seawater equipment, desalination, and heat exchangers. These fittings can withstand critical pitting temperatures above 50°C, making them highly dependable in chloride-rich environments. Available in socket weld and threaded forms, they provide secure and durable connections for pipelines. With excellent weldability, machinability, and dimensional accuracy, these fittings are supplied in both standard and custom-built specifications, ensuring they meet the specific needs of demanding industries across the globe.

Duplex Steel S32760 Threaded Fittings

  • High Corrosion Resistance – Excellent performance against sulphuric acid & harsh chemicals.
  • Durable & Reliable – Long service life with superior mechanical strength.
  • Wide Product Range – Elbows, Tees, Reducers, Cross, Bends, Caps, Stub Ends.
  • Global Supply – Exported to Middle East, Asia, Africa & European markets.
  • Custom Sizes Available – Tailored fittings to meet specific client requirements.
  • International Standards – Manufactured as per ASTM B366 & ASME B16.9.
Duplex Steel S32760 Threaded Fittings
Get Quote

Super Duplex S32760 Forged Fittings

ASTM A182 Super Duplex UNS S32760 Forged Fittings Specification

Grades    :  Super Duplex Steel (S32760)



Specifications:  ASTM A182 / ASME SA182



Dimension:   ASTM, ASME, ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799

Size:  1/8″ NB – 4″NB

Class& LBS:  2000#, 3000#, 6000#, 9000#

Schedule:  Sch. 5 TO Sch. XXS.

Type:  SOCKET WELD (S/W) & SCREWED (SCRD), Threaded – NPT, BSP, BSPT

Form:  Elbow, Tee, Cross, Coupling, Nipple, Plug, Union, Socket, Hex Bushing

Our Super Duplex S32760 Forged Fittings conforms to NACE MR0175/ISO 15156.

ASTM A182 Super Duplex S32760 Forged Fittings Equivalent Grades:-

Standard WERKSTOFF NR. UNS GOST AFNOR JIS BS EN
S32760 1.4501 S32760 - - - - -

ASTM A182 Super Duplex S32760 Forged Fittings Chemical Composition:-

Grade Ni Mo C Mn Si Cr Cu Fe W P S N
S32760 6.4 max 3.5 max 0.03 max 1.0 max 1.0 max 25.5 max 0.75 max Bal. 0.75 max 0.03 max 0.01 max 0.25 max

ASTM A182 Super Duplex S32760 Forged Fittings Mechanical Properties :-

PREN Hardness HB Tensile Strength Yield Strength (0.2% Offset) Elongation (% in 50mm)
40 270 max. 750 min. (N/mm2) 550 min. 25 %

Wide Range of Duplex Steel UNS S32760 Forged Components

The range of Duplex Steel UNS S32760 Forged Fittings includes elbows, tees, caps, couplings, crosses, and nipples, all manufactured to deliver maximum efficiency in piping systems. These fittings are developed from high-quality raw materials, ensuring long-term reliability in corrosive and high-pressure applications. Their superior mechanical properties, combined with outstanding resistance to seawater and chemical processing environments, make them ideal for critical applications. Industries such as oil refining, petrochemical, and power plants depend on these forged components for their strength and durability. With availability in different standards and dimensions, they cater to global industrial demands effectively.

Types of Super Duplex Steel S32760 Forged Fittings

UNS S32760 Socketweld Fittings Supplier in South Africa Duplex UNS S32760 Forged Threaded Pipe Fittings Supplier
Duplex Steel S32760 45° Elbow Exporter in Algeria ANSI B16.11 Duplex S32760 Threaded Coupling Exporter
Duplex Steel UNS S32760 Socket weld Cross in Egypt Duplex Steel S32760 Threaded Elbow Supplier in Africa
Duplex Steel DIN 1.4501 Socket weld Union in Ghana Duplex Steel UNS S32760 Threaded Union (Male x Female)
Duplex Steel UNS S32760 Forged Socket Full Coupling Duplex Steel UNS S32760 Threaded Bushing in Tanzania
Duplex Steel S32760 Socket Branch Outlet in Ethiopia Duplex Steel S32760 Threading Pipe Cap Dealer in Peru
ASME SA 182 Duplex Steel S32760 Socketweld Boss Duplex Steel UNS S32760 Threaded Adapter in Madagascar
ASME SA 182 Duplex Steel S32760 Socketweld Boss Duplex Steel UNS S32760 Threaded Branch Outlet in Libya
A182 Duplex Steel UNS S32760 Socket Reducer Insert Duplex Steel UNS S32760 Threaded Pipe Nipple in Chile
Duplex Steel UNS S32760 Socket Lateral Outlet in Brazil Duplex Steel UNS S32760 ASTM A182 Threaded Bushing
UNS S32760 Socketweld Nipple Branch Outlet in Zambia Duplex Steel S32760 Threaded Bull Plug in Nigeria

As your one-stop manufacturing partner, Sunrise Industries maintains a complete inventory of ready-to-sell raw materials alongside custom parts fabrication and full engineering services. From prototyping to production, we provide everything at a single location—serving all industrial sectors and transforming manufacturing value chains.
